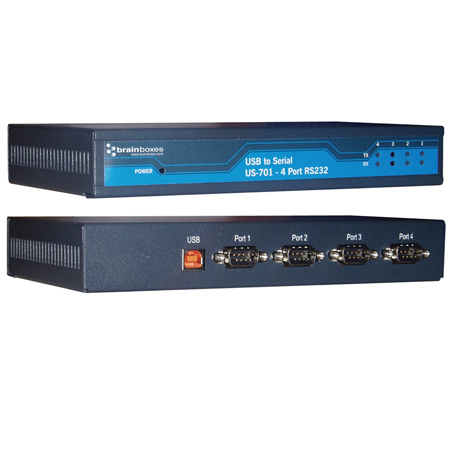

us 701 usb 4 port rs232 1mbaud
  • 4 Port RS-232 USB to Serial Server
  • Data rate from 300 to 921,600 baud
  • High Retention USB Socket, IP30 Rated Case
  • Drivers for all popular operating systems including Windows 8
  • Powered by USB connection
  • Lifetime Warranty and Support
  • US-701-datasheet (0.85 MB)
Achat en Quantité ? Demandez un Devis

Demandez un Devis

Description

USB vers Série fournissant quatre ports série RS232. Débit de transfert de données jusqu’à 921.600 bauds, modules FIFO de 128 octets pour la transmission et 256 octets pour la réception, associés avec des pilotes en ligne de 1 Mbit/s offrant des performances exceptionnelles sur votre ordinateur portable ou votre PC. Les pilotes pour les systèmes d’exploitation Windows 32 bit et 64 bit incluent Windows XP, Server 2003, Vista, Server 2008 et Windows 7.

Customer Feedback

Systèmes d'exploitation



Spec Tech

Serial Port
Ports4
ProtocolRS232
ConnectorDB9 Connector (9 Pin Male) USB Type B High Retention
Tx FIFO Size128
Rx FIFO Size384
Operating DistanceEIA - RS232 Standard
CableUSB cable Type A to B (1 metre ~ 3ft)
Serial Port Settings
Max Baud Rate921,600
Data Bits7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1 or 2
Flow ControlRTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx ModesPoint to Point
Power
Power Input5V DC input
Power Supply 1 DescriptionEnter New Value
Power Supply 2 Description
General
Mounting Accessories 1 DescriptionWall Mounting kit for 4&8 ports - MK-059
Mounting Accessories 2 DescriptionSnap In DIN Clip kit for 4&8 ports - MK-070
PCB Layers4
Device Dims with ears96.3x101x25
Device Dims without ears91.6x77x25
Industrial StandardYes
Power Consumption300mA @ 5V
Product Weight0.722 kg, 25.47 ounces
Product Dimensions215x123x34 mm, 8.5x4.8x1.3 inches
Packaged Weight0.962 kg, 33.93 ounces
Packaged Dimensions300x135x80 mm, 11.8x5.3x3.1 inches
GTIN (barcode)837324002027
Operating System Compatibility
Operating Systems
  • Microsoft Windows 10
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Mac OS X
  • Windows XP 32 bit & 64 bit Editions
  • Linux
Interface
USB 2.0480 Mb/s USB 2.0 data rates.

Agréments

Microsoft Signed Drivers


Microsoft Hardware
