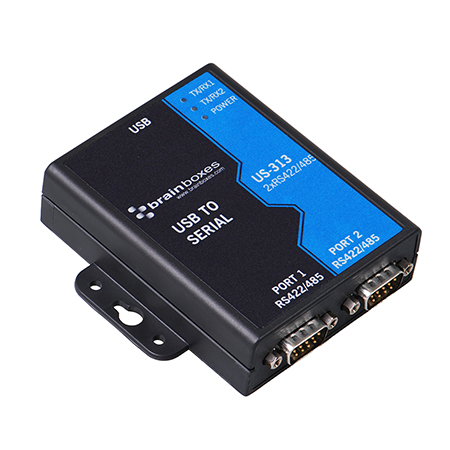

us 313 usb 2 port rs422 485 1mbaud
  • 2 Port RS-422/485 USB to Serial Adapter
  • Data rate from 300 to 921,600 baud
  • High Retention USB Socket
  • Drivers for all popular operating systems including Windows 10
  • Works where many other USB to Serial devices do not
  • Lifetime Warranty and Support
  • US-313-datasheet (0.58 MB)
Achat en Quantité ? Demandez un Devis

Demandez un Devis

Description

USB vers Série fournissant deux ports série RS422/485. Débit de transfert de données jusqu’à 921.600 bauds, modules FIFO de 128 octets pour la transmission et 384 octets pour la réception, associés avec des pilotes en ligne de 1 Mbit/s offrant des performances exceptionnelles sur votre ordinateur portable ou votre PC. Les pilotes pour les systèmes d’exploitation Windows 32 bit et 64 bit incluent Windows XP, Server 2003, Vista, Server 2008 et Windows 7.

Customer Feedback

Systèmes d'exploitation



Spec Tech

Serial Port
Ports2
ProtocolRS422/485
ConnectorDB9 Connector - 9 Pin Male
Tx FIFO Size128
Rx FIFO Size256
Operating DistanceRS422/485 Standard (4000 ft : 1200 metres)
CableUSB cable Type A to B (1 metre ~ 3ft)
Serial Port Settings
Max Baud Rate921,600
Data Bits7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1 or 2
Flow ControlRTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx ModesFull Duplex, Half Duplex Autogating
Power
Power InputPower through USB, no extra power supplied required
Power Supply 1 DescriptionPower through USB, no extra power supplied required
Power Supply 2 DescriptionPower through USB, no extra power supplied required
General
Mounting Accessories 1 DescriptionDIN-Rail Mounting Kit - MK-048
Mounting Accessories 2 Description
PCB Layers4
Device Dims with ears96.3x101x25
Device Dims without ears91.6x77x25
Industrial StandardYes
Power Consumption180mA @ 5V
Product Weight0.115 kg, 4.06 ounces
Product Dimensions102x100x27 mm, 4.0x3.9x1.1 inches
Packaged Weight0.242 kg, 8.54 ounces
Packaged Dimensions160x135x49 mm, 6.3x5.3x1.9 inches
GTIN (barcode)837324002126
Operating System Compatibility
Operating Systems
  • Microsoft Windows 10
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Mac OS X
  • Windows XP 32 bit & 64 bit Editions
  • Linux
Interface
USB 2.0480 Mb/s USB 2.0 data rates.

Agréments

Microsoft Signed Drivers


Microsoft Hardware
