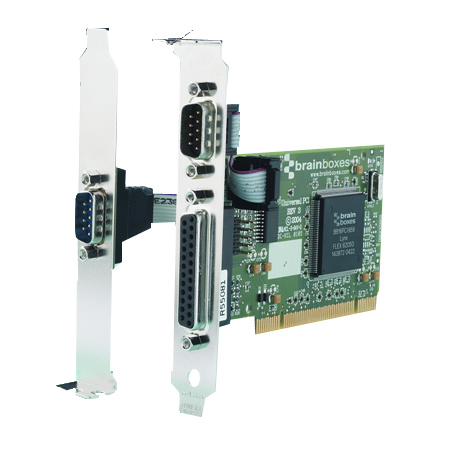

Carte Série PCI 2 Port RS232 avec Port Imprimante Parallèle LPT UC-475

PCI Universel fournissant un port série RS232, un port imprimante LPT et un port optionnel RS232 sur une broche de raccordement. Débit de transfert de données jusqu’à 115 200 bauds, modules FIFO de 128 octets pour la transmission et 128 octets pour la réception, associés à des pilotes avec lignes à 1 Mbit/s, assurant une performance sans faille à votre PC. Sont inclus les pilotes pour tous les systèmes d’exploitation Windows 32 bit et 64 bit dont Windows 7.
Customer Feedback
Spec Tech
Serial Port | |
Ports | 2 |
Protocol | RS232 |
Connector | DB9 Connector - 9 Pin Male |
UART | Brainboxes 16C958 |
UART Compatibility | 16750/16550/16450 backwards compatible as well as an enhanced 950 mode |
Tx FIFO Size | 128 |
Rx FIFO Size | 128 |
Operating Distance | EIA - RS232 Standard |
Cable | Optional 1 port LPT on fly lead (CC-032) |
Serial Port Settings | |
Max Baud Rate | 115,200 |
Data Bits | 5,6,7 or 8 |
Parity | Odd, Even, None, Mark or Space |
Stop Bits | 1, 1.5 or 2 |
Flow Control | RTS/CTS, DSR/DTR, XON/XOFF |
Tx/Rx Modes | Point to Point |
Printer Port | |
Printer Port | 1 |
Printer Port Protocol | LPT |
Printer Port Connector | 25 Pin Female D Connector on Fly Lead |
General | |
PCB Layers | 4 |
Form Factor | Standard Height |
Includes Printer Port | Yes |
Galvanic Isolation | No |
Power Consumption | 195mA @ 5V, 15mA @ 12V |
Product Weight | 0.083 kg |
Product Dimensions | 136(l) x 18(w) x 120(h) mm |
Packaged Weight | 0.194 kg |
Packaged Dimensions | 160(l) x 135(w) x 45(h) mm |
GTIN (barcode) | 837324000528 |
Operating System Compatibility | |
Operating Systems |
|
Interface | |
PCI 3.0 | Peripheral Component Interface |
