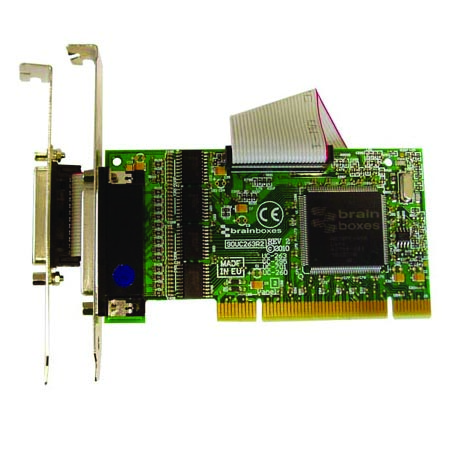

Carte Série PCI 4xRS232 avec Port Parallèle LPT pour Imprimante - N'est plus produit UC-295

PCI Universel fournissant quatre ports série RS232 et un port LPT (4 ports RS232 à 9 broches D sur l’équerre par un connecteur à haute densité avec un port LPT à 9 broches D sur une broche de raccordement). Débit de transfert de données jusqu’à 115 200 bauds, modules FIFO de 64 octets pour la transmission et 64 octets pour la réception, associés à des pilotes avec lignes à 1 Mbit/s, assurant une performance sans faille à votre PC. Sont inclus les pilotes pour tous les systèmes d’exploitation Windows 32 bit et 64 bit dont Windows 7.
N'est plus produit- Recommended Alternative Products
UC-295 | UC-414 | UC-475 | UC-464 | UC-203 |
![]() | ![]() | ![]() | ![]() | ![]() |
Carte Série PCI 4xRS232 avec Port Parallèle LPT pour Imprimante | Carte Serie PCI 4 Ports Serie RS232 (3 ports à 9 broches + 1 port à 9 broches) avec Port Parallele LPT pour Imprimante | Carte Série PCI 2 Port RS232 avec Port Imprimante Parallèle LPT | Carte Série PCI low profile 1 Port RS232 avec Port Imprimante Parallèle LPT | Carte Série PCI Low Profile 2 Ports RS232 avec un Port Parallèle LPT |
Ports
4
Protocol
RS232
UART
Brainboxes 16C958
Max Baud Rate
115,200
Printer Port
1
Form Factor
Standard Height
| Ports
4
Protocol
RS232
UART
Brainboxes 16C958
Max Baud Rate
115,200
Printer Port
1
Form Factor
Standard Height
| Ports
2
Protocol
RS232
UART
Brainboxes 16C958
Max Baud Rate
115,200
Printer Port
1
Form Factor
Standard Height
| Ports
1
Protocol
RS232
UART
Brainboxes 16C958
Max Baud Rate
115,200
Printer Port
1
Form Factor
Standard Height
| Ports
2
Protocol
RS232
UART
Brainboxes 16C958
Max Baud Rate
115,200
Printer Port
1
Form Factor
Low Profile
|
![]() ![]() ![]() ![]() | ![]() ![]() ![]() ![]() | ![]() ![]() ![]() ![]() | ![]() ![]() ![]() ![]() | ![]() ![]() ![]() ![]() |
£ 280.00 (gbp) | £ 190.00 (gbp) | £ 99.95 (gbp) | £ 99.95 (gbp) | £ 85.00 (gbp) |
Détails | Détails | Détails | Détails |
Customer Feedback
Spec Tech
Serial Port | |
Ports | 4 |
Protocol | RS232 |
Connector | DB9 Connector (9 Pin Male) and LPT port (25 Pin Female) |
UART | Brainboxes 16C958 |
UART Compatibility | 16750/16550/16450 backwards compatible as well as an enhanced 950 mode |
Tx FIFO Size | 64 |
Rx FIFO Size | 64 |
Operating Distance | EIA - RS232 Standard |
Cable | 4 port cable (44 way D to 4x9 Pin Male) |
Serial Port Settings | |
Max Baud Rate | 115,200 |
Data Bits | 5,6,7 or 8 |
Parity | Odd, Even, None, Mark or Space |
Stop Bits | 1, 1.5 or 2 |
Flow Control | RTS/CTS, DSR/DTR, XON/XOFF |
Tx/Rx Modes | Point to Point |
Printer Port | |
Printer Port | 1 |
Printer Port Protocol | LPT |
Printer Port Connector | 25 Pin Female D Connector on Fly Lead |
General | |
PCB Layers | 4 |
Form Factor | Standard Height |
Includes Printer Port | Yes |
Galvanic Isolation | No |
Power Consumption | 300mA @ 5V, 60mA @ 12V |
Product Weight | 0.072 kg, 2.54 ounces |
Product Dimensions | 135x120x18 mm, 5.3x4.7x0.7 inches |
Packaged Weight | 0.693 kg, 24.44 ounces |
Packaged Dimensions | 200x135x80 mm, 7.9x5.3x3.1 inches |
GTIN (barcode) | 837324002164 |
Operating System Compatibility | |
Operating Systems |
|
Interface | |
PCI 3.0 | Peripheral Component Interface |
