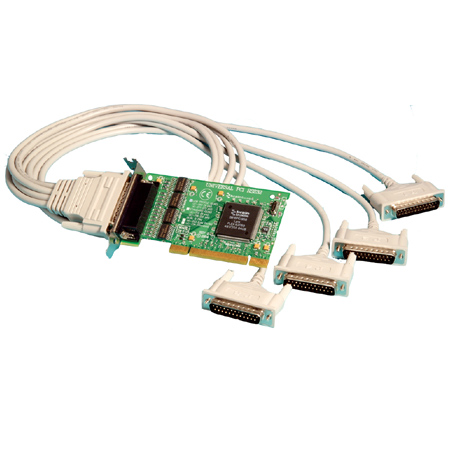

Carte Série PCI Low Profile 4 Ports RS232 DB25 UC-271

PCI Universel fournissant quatre ports série RS232 low profile (4 connecteurs de 25 broches). Débit de transfert de données jusqu’à 115 200 bauds, modules FIFO de 64 octets pour la transmission et 64 octets pour la réception, associés à des pilotes avec lignes à 1 Mbit/s, assurant une performance sans faille à votre PC. Sont inclus les pilotes pour tous les systèmes d’exploitation Windows 32 bit et 64 bit dont Windows 7.
Customer Feedback
Spec Tech
Serial Port | |
Ports | 4 |
Protocol | RS232 |
Connector | DB25 Connector - 25 Pin Male |
UART | Brainboxes 16C958 |
UART Compatibility | 16750/16550/16450 backwards compatible as well as an enhanced 950 mode |
Tx FIFO Size | 64 |
Rx FIFO Size | 64 |
Operating Distance | EIA - RS232 Standard |
Cable | 4 port cable (44 way D to 4x25 Pin Male) |
Serial Port Settings | |
Max Baud Rate | 115,200 |
Data Bits | 5,6,7 or 8 |
Parity | Odd, Even, None, Mark or Space |
Stop Bits | 1, 1.5 or 2 |
Flow Control | RTS/CTS, DSR/DTR, XON/XOFF |
Tx/Rx Modes | Point to Point |
General | |
PCB Layers | 4 |
Form Factor | Low Profile |
Includes Printer Port | No |
Galvanic Isolation | No |
Power Consumption | 210mA @ 5V, 60mA @ 12V |
Product Weight | awaiting |
Product Dimensions | awaiting |
Packaged Weight | 0.645 kg |
Packaged Dimensions | 200(l) x 135(w) x 80(h) mm |
GTIN (barcode) | 837324000399 |
Operating System Compatibility | |
Operating Systems |
|
Interface | |
PCI 3.0 | Peripheral Component Interface |
