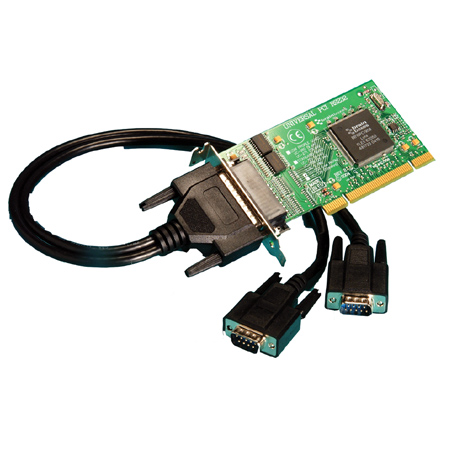

Carte Série PCI Low Profile 2 Port RS232 - UC-253 - Brainboxes

PCI Universel Low Profile fournissant deux ports série RS232 sur câble. Débit de transfert de données jusqu’à 115 200 bauds, modules FIFO de 128 octets pour la transmission et 128 octets pour la réception, associés à des pilotes avec lignes à 1 Mbit/s, assurant une performance sans faille à votre PC. Sont inclus les pilotes pour tous les systèmes d’exploitation Windows 32 bit et 64 bit dont Windows 7.

UC-253-datasheet (0.71 MB)

N'est plus produit- Recommended Alternative Products

UC-253	UC-101	UC-235	UC-203	UC-734

Carte Série PCI Low Profile 2 Port RS232	Carte Série PCI Low Profile 2 Ports RS232	Carte Série PCI Low Profile 1 Port RS232	Carte Série PCI Low Profile 2 Ports RS232 avec un Port Parallèle LPT	Carte Série PCI 2 Ports RS232 DB9
Ports 2 Protocol RS232 UART Brainboxes 16C958 Max Baud Rate 115,200 Form Factor Low Profile	Ports 2 Protocol RS232 UART Brainboxes 16C958 Max Baud Rate 115,200 Form Factor Low Profile	Ports 1 Protocol RS232 UART Brainboxes 16C958 Max Baud Rate 115,200 Form Factor Low Profile	Ports 2 Protocol RS232 UART Brainboxes 16C958 Max Baud Rate 115,200 Printer Port 1 Form Factor Low Profile	Ports 2 Protocol RS232 UART Brainboxes 16C958 Max Baud Rate 115,200 Form Factor Standard Height

£ 129.95 (gbp)	£ 85.00 (gbp)	£ 60.00 (gbp)	£ 85.00 (gbp)	£ 129.95 (gbp)
	Détails	Détails	Détails	Détails

Customer Feedback

I changed to BrainBoxes serial ports on PCI cards (UC-235) ... and haven't had any problems since.
Pete Dowson

Great products and brilliant to see still manufactured in UK
AI Automation

Fantastic job keep up the good work!
Vibra-Technics

I've purchased a number of these now and haven't had a problem with any of them.
Somfy Projects

Brainboxes are great products. Very stable & reliable.
Winner Hotel Software

Efficient and fast
Grid Edge Ltd

Like the products. easy to use.
Gauss Instruments International GmbH

‹ ›

Systèmes d'exploitation

Spec Tech

Serial Port
Ports	2
Protocol	RS232
Connector	DB9 Connector - 9 Pin Male
UART	Brainboxes 16C958
UART Compatibility	16750/16550/16450 backwards compatible as well as an enhanced 950 mode
Tx FIFO Size	128
Rx FIFO Size	128
Operating Distance	EIA - RS232 Standard
Cable	2 Port Cable: DB9 connector (9 Pin Male)
Serial Port Settings
Max Baud Rate	115,200
Data Bits	5,6,7 or 8
Parity	Odd, Even, None, Mark or Space
Stop Bits	1, 1.5 or 2
Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx Modes	Point to Point
General
PCB Layers	4
Form Factor	Low Profile
Includes Printer Port	No
Galvanic Isolation	No
Power Consumption	260mA @ 5V / 30mA @ 12V
Product Weight	0.067 kg, 2.36 ounces
Product Dimensions	134x80x18 mm, 5.3x3.1x0.7 inches
Packaged Weight	0.179 kg, 6.31 ounces
Packaged Dimensions	200x135x80 mm, 7.9x5.3x3.1 inches
GTIN (barcode)	837324000344
Operating System Compatibility
Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Windows Server 2012 Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000 DOS
Interface
PCI 3.0	Peripheral Component Interface

Agréments

Microsoft Signed Drivers

Microsoft Hardware

Other
