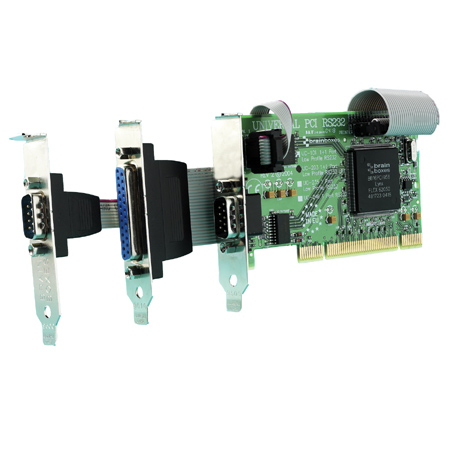

Carte Série PCI Low Profile 2 Ports RS232 avec un Port Parallèle LPT UC-203

PCI Universel offrant deux ports série RS232 et un port d’imprimante. Débit de transfert de données jusqu’à 921.600 bauds, modules FIFO de 128 octets pour la transmission et 128 octets pour la réception, associés à des pilotes avec lignes à 1 Mbit/s, assurant une performance sans faille à votre PC. Sont inclus les pilotes pour tous les systèmes d’exploitation Windows 32 bit et 64 bit dont Windows 7.
Customer Feedback
Spec Tech
Serial Port | |
Ports | 2 |
Protocol | RS232 |
Connector | 25 Pin Parallel Port Female Connector |
UART | Brainboxes 16C958 |
UART Compatibility | 16750/16550/16450 backwards compatible as well as an enhanced 950 mode |
Tx FIFO Size | 128 |
Rx FIFO Size | 128 |
Operating Distance | EIA - RS232 Standard |
Cable | 1 port RS232 and printer port on fly lead |
Serial Port Settings | |
Max Baud Rate | 115,200 |
Data Bits | 5,6,7 or 8 |
Parity | Odd, Even, None, Mark or Space |
Stop Bits | 1, 1.5 or 2 |
Flow Control | RTS/CTS, DSR/DTR, XON/XOFF |
Tx/Rx Modes | Point to Point |
Printer Port | |
Printer Port | 1 |
Printer Port Protocol | LPT |
Printer Port Connector | 25 Pin Female D Connector on Fly Lead |
General | |
PCB Layers | 4 |
Form Factor | Low Profile |
Includes Printer Port | Yes |
Galvanic Isolation | No |
Power Consumption | 180mA @ 5V, 30mA @ 12V |
Product Weight | 0.064 kg |
Product Dimensions | 136(l) x 18(w) x 80(h) mm |
Packaged Weight | 0.232 kg |
Packaged Dimensions | 160(l) x 135(w) x 45(h) mm |
GTIN (barcode) | 837324000313 |
Operating System Compatibility | |
Operating Systems |
|
Interface | |
PCI 3.0 | Peripheral Component Interface |
