• uc 146 upci 1xlpt printer port
  • UC 146 LPT Printer Port Pinout
uc 146 upci 1xlpt printer port

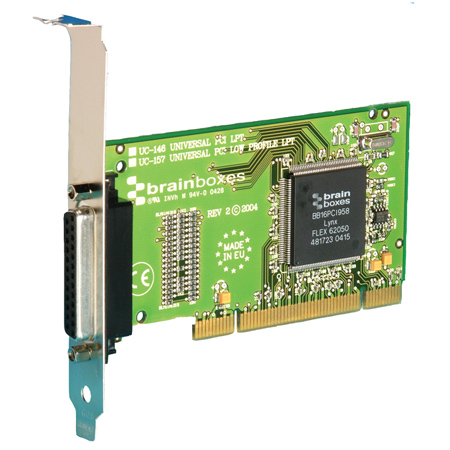

  • 1 LPT Printer Port Card
  • PCI 3.0
  • Drivers for all popular operating systems
  • Detailed sample source code for many popular programming languages
  • Lifetime Warranty
  • Lifetime Support
  • UC-146-datasheet (1.04 MB)
Achat en Quantité ? Demandez un Devis

Demandez un Devis

Description

Carte PCI Universel fournissant un port LPT de taille standard. Sont inclus les pilotes pour tous les systèmes d’exploitation Windows 32 bit et 64 bit dont Windows 7.

Customer Feedback

Systèmes d'exploitation





Spec Tech

Serial Port
Ports1
ProtocolLPT Printer
Connector25 Pin Parallel Port Female Connector
UARTBrainboxes 16C958
UART Compatibility16750/16550/16450 backwards compatible as well as an enhanced 950 mode
Cable
Printer Port
Printer Port1
Printer Port ProtocolLPT
Printer Port Connector25 Pin Female D Connector on Fly Lead
General
PCB Layers4
Form FactorStandard Height
Includes Printer PortYes
Power Consumption195mA @ 5V / 15mA @ 12V
Product Weight0.067 kg
Product Dimensions136(l) x 18(w) x 120(h) mm
Packaged Weight0.178 kg
Packaged Dimensions160(l) x 135(w) x 45(h) mm
GTIN (barcode)837324000290
Operating System Compatibility
Operating Systems
  • Microsoft Windows 10
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Windows Server 2012
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows ME
  • Microsoft Windows 2000
  • Microsoft Windows 98
  • Microsoft Windows NT 4.0
  • Microsoft Windows 95
  • Linux
  • DOS
Interface
PCI 3.0Peripheral Component Interface

Agréments

Microsoft Signed Drivers


Microsoft Hardware


Other



Documents

FAQ
