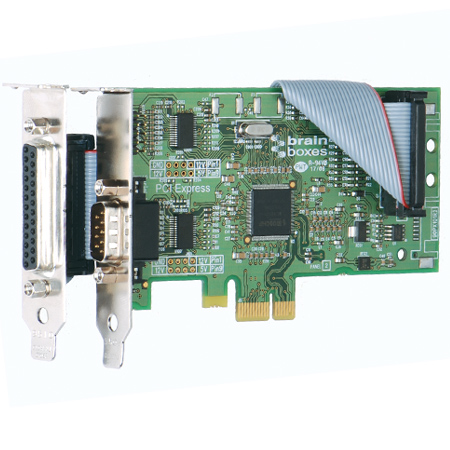

Carte Série PCI Express Low Profile à 2 Port RS232 avec un Port d’Imprimante LPT - PX-203 - Brainboxes

px 203 lp pcie 1 1xrs232 1xlpt printer port 1mbaud

La carte PCI Express offre 2 ports série RS232 et 1 port d’Imprimante LPT. Les ports LPT et RS232 sont sur une broche de raccordement séparée. Débit de transfert de données jusqu’à 115 200, modules FIFO de 16 octets pour la transmission et 16 octets pour la réception assurant une performance sans faille à votre PC. Les pilotes pour les systèmes d’exploitation Windows 32 bit et 64 bit incluent Windows 2000, XP, Server 2003, Vista, Server 2008 et Windows 7.

PX-203-datasheet (0.74 MB)

N'est plus produit- Recommended Alternative Products

PX-203	PX-475	UC-203	UC-263	PX-235

Carte Série PCI Express Low Profile à 2 Port RS232 avec un Port d’Imprimante LPT	Carte Série PCI Express 1 Port RS232 avec Port Imprimante Parallèle LPT	Carte Série PCI Low Profile 2 Ports RS232 avec un Port Parallèle LPT	Carte Série PCI Low Profile 4xRS232 avec un Port Parallèle LPT pour Imprimante	Carte Série PCI Express Low Profile à 1 Port RS232
Ports 2 Protocol RS232 UART Oxford 950 Max Baud Rate 115,200 Printer Port 1 Form Factor Low Profile	Ports 1 Protocol RS232 UART Oxford 950 Max Baud Rate 921,600 Printer Port 1 Form Factor Standard Height	Ports 2 Protocol RS232 UART Brainboxes 16C958 Max Baud Rate 115,200 Printer Port 1 Form Factor Low Profile	Ports 4 Protocol RS232 UART Brainboxes 16C958 Max Baud Rate 115,200 Printer Port 1 Form Factor Low Profile	Ports 1 Protocol RS232 UART Oxford 950 Max Baud Rate 921,600 Form Factor Low Profile

£ 85.00 (gbp)	£ 99.95 (gbp)	£ 85.00 (gbp)	£ 280.00 (gbp)	£ 110.00 (gbp)
	Détails	Détails	Détails	Détails

Customer Feedback

…I would recommend a BrainBoxes PCI Express card or PCMCIA card. Brainboxes seems to be a forward-thinking company that has very strong driver support across its entire range, including some products more than 10 years old.
Tim Long

I have just received the BB-400 and started it up just 30 minutes ago... and - what should I say...

THANK YOU!!!

It is exactly what Support told me on the phone! I will continue with the real tests and implementation of our software - but the DIO is working exactly as I need it - PERFECT!
SystemBuilder Gmbh

Great products. Excellent quality.
ENZ Engineering, Berlin

Great products and brilliant to see still manufactured in UK
AI Automation

Fantastic job keep up the good work!
Vibra-Technics

I've purchased a number of these now and haven't had a problem with any of them.
Somfy Projects

Brainboxes are great products. Very stable & reliable.
Winner Hotel Software

‹ ›

Systèmes d'exploitation

Spec Tech

Serial Port
Ports	2
Protocol	RS232
Connector	DB9 Connector - 9 Pin Male
UART	Oxford 950
UART Compatibility	16750/16550/16450 backwards compatibile
Tx FIFO Size	16
Rx FIFO Size	16
Operating Distance	EIA - RS232 Standard
Cable	1 port RS232 and printer port on fly lead
Serial Port Settings
Max Baud Rate	115,200
Data Bits	5,6,7 or 8
Parity	Odd, Even, None, Mark or Space
Stop Bits	1, 1.5 or 2
Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx Modes	Point to Point
Printer Port
Printer Port	1
Printer Port Protocol	LPT
Printer Port Connector	25 Pin Female D Connector on Fly Lead
General
PCB Layers	4
Form Factor	Low Profile
Includes Printer Port	Yes
Galvanic Isolation	No
Power Consumption	380mA @ 3.3V, 15mA @ 12V
Product Weight	0.054 kg
Product Dimensions	132(l) x 18(w) x 80(h) mm
Packaged Weight	0.237 kg
Packaged Dimensions	160(l) x 135(w) x 45(h) mm
GTIN (barcode)	837324000191
Operating System Compatibility
Operating Systems	Microsoft Windows 8 32 bit & 64 bit Editions Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions
Interface
PCI Express x1, x4, x8 & x16 lane slots	PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.
