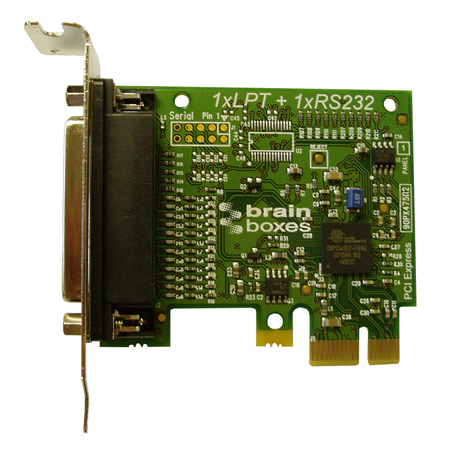

px 157 lp pcie 1xlpt printer port

La carte PCI Express offre un port standard d’industrie LPT à 25 broches sur un connecteur low profile. Les pilotes pour les systèmes d’exploitation Windows 32 bit et 64 bit incluent Windows 2000, XP, Server 2003, Vista, Server 2008 et Windows 7.

Achat en Quantité ? Demandez un Devis

Demandez un Devis

Customer Feedback

Systèmes d'exploitation



Spec Tech

Serial Port
Ports1
ProtocolLPT Printer
Connector25 Pin Parallel Port Female Connector
UARTOxford 950
UART Compatibility16750/16550/16450 backwards compatibile
Cable
Printer Port
Printer Port1
Printer Port ProtocolLPT IEEE-1284 with SPP/PS2/EPP/ECP support
Printer Port Connector25 Pin Female D Connector on Fly Lead
General
PCB Layers4
Form FactorLow Profile
Includes Printer PortYes
Power Consumption380mA @ 3.3V
Product Weight0.047 kg
Product Dimensions80(l) x 18(w) x 80(h) mm
Packaged Weight0.14 kg
Packaged Dimensions160(l) x 135(w) x 45(h) mm
GTIN (barcode)837324001921
Operating System Compatibility
Operating Systems
  • Microsoft Windows 10
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
Interface
PCI Express x1, x4, x8 & x16 lane slotsPCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.

Agréments

Microsoft Signed Drivers


Microsoft Hardware
