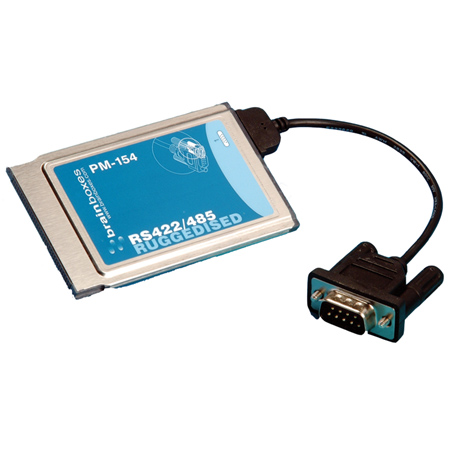

pm 154 pcmcia 1xrs422 485 rugged 1mbaud

PC Card fournissant un port série RS422/485 renforcé. Débit de transfert de données jusqu’à 921.600 bauds, modules FIFO de 128 octets pour la transmission et 128 octets pour la réception, associés à des pilotes avec lignes à 1 Mbit/s, assurant une performance sans faille à votre ordinateur portable. Les pilotes pour les systèmes d’exploitation Windows 32 bit et 64 bit inclus Windows 95/98/2000, XP, Server 2003, Vista, Server 2008 et Windows 7.

Achat en Quantité ? Demandez un Devis

Demandez un Devis

Customer Feedback

Systèmes d'exploitation


Spec Tech

Serial Port
Ports1
ProtocolRS422/485
ConnectorDB9 Connector - 9 Pin Male
UARTBrainboxes 16PCI950+
UART Compatibility16750/16550/16450 backwards compatible as well as an enhanced 950 mode
Tx FIFO Size128
Rx FIFO Size128
Operating DistanceRS422/485 Standard (4000 ft : 1200 metres)
CableFully wired moulded cable
Serial Port Settings
Max Baud Rate921,600
Data Bits5,6,7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1, 1.5 or 2
Flow ControlRTS/CTS, DTR/DSR
Tx/Rx ModesFull Duplex, Half Duplex Autogating
General
RuggedisedYes
PCB Layers4
Power Consumption100mA @ 5V
Product Weight0.050 kg, 1.76 ounces
Product Dimensions85x54x5 mm, 3.3x2.1x0.2 inches
Packaged Weight0.166 kg, 5.86 ounces
Packaged Dimensions160x135x45 mm, 6.3x5.3x1.8 inches
GTIN (barcode)837324000146
Operating System Compatibility
Operating Systems
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows 2000
Interface
PCMCIAPCMCIA (Personal Computer Memory Card International Association) is an international standards body and trade association with over 100 member companies that was founded in 1989 to establish standards for Integrated Circuit cards and to promote interchangeability among mobile computers where ruggedness, low power, and small size were critical. Change

Agréments

Microsoft Signed Drivers


Microsoft Hardware
