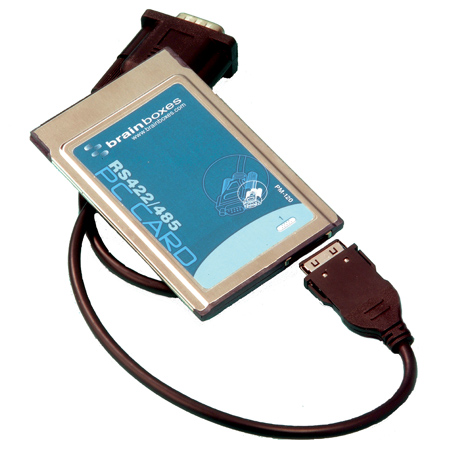

PCMCIA RS422/485 à 1 Port avec câble détachable et débit de données de 1 Méga-baud. - N'est plus produit PM-120

  • pm 120 pcmcia 1xrs422 485 1mbaud
  • PM 120 RS 422 485 Pinout
pm 120 pcmcia 1xrs422 485 1mbaud

Carte PC offrant un port série RS422/485. Débit de transfert de données jusqu’à 921.600 bauds, modules FIFO de 128 octets pour la transmission et 128 octets pour la réception, couplés avec des pilotes en ligne de 1 Mbit/s offrant des performances exceptionnelles sur votre ordinateur portable. Les pilotes pour les systèmes d’exploitation Windows 32 bit et 64 bit inclus Windows 95/98/2000, XP, Server 2003, Vista, Server 2008 et Windows 7.

N'est plus produit- Recommended Alternative Products

PM-120PM-154PM-143PX-324UC-324
PM-120 - PCMCIA RS422/485 à 1 Port avec câble détachable et débit de données de 1 Méga-baud.PM-154 - PCMCIA à 1 Port RS422/485 avec un câble intégré renforcé et un débit de données de 1 Méga-baud.PM-143 - PCMCIA à 1 Port RS232 avec câble intégré renforcé et débit de données de 1 Méga-baudPX-324 - Carte Série PCI Express RS422/485 1 PortUC-324 - Carte Série PCI 1 Port RS422/485
PCMCIA RS422/485 à 1 Port avec câble détachable et débit de données de 1 Méga-baud.PCMCIA à 1 Port RS422/485 avec un câble intégré renforcé et un débit de données de 1 Méga-baud.PCMCIA à 1 Port RS232 avec câble intégré renforcé et débit de données de 1 Méga-baudCarte Série PCI Express RS422/485 1 PortCarte Série PCI 1 Port RS422/485
Ports
1
Protocol
RS422/485
UART
Brainboxes 16PCI950+
Max Baud Rate
921,600
Ruggedised
No
Ports
1
Protocol
RS422/485
UART
Brainboxes 16PCI950+
Max Baud Rate
921,600
Ruggedised
Yes
Ports
1
Protocol
RS232
UART
Brainboxes 16PCI950+
Max Baud Rate
921,600
Ruggedised
Yes
Ports
1
Protocol
RS422/485
UART
Oxford 950
Max Baud Rate
921,600
Form Factor
Standard Height
Ports
1
Protocol
RS422/485
UART
Brainboxes 16C958
Max Baud Rate
921,600
Form Factor
Standard Height
1 Port RS422/485 PCI Express 1 Port RS422/485 PCI
£ 115.00 (gbp)£ 135.00 (gbp)£ 135.00 (gbp)£ 85.00 (gbp)£ 59.99 (gbp)
DétailsDétailsDétailsDétails

Customer Feedback

Systèmes d'exploitation

Spec Tech

Serial Port
Ports1
ProtocolRS422/485
ConnectorDB9 Connector - 9 Pin Male
UARTBrainboxes 16PCI950+
UART Compatibility16750/16550/16450 backwards compatible as well as an enhanced 950 mode
Tx FIFO Size128
Rx FIFO Size128
Operating DistanceRS422/485 Standard (4000 ft : 1200 metres)
CableFully wired moulded cable
Serial Port Settings
Max Baud Rate921,600
Data Bits5,6,7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1, 1.5 or 2
Flow ControlRTS/CTS, DTR/DSR
Tx/Rx ModesFull Duplex, Half Duplex Autogating
General
RuggedisedNo
PCB Layers4
Power Consumption100mA @ 5V
Product Weight0.026 kg, 0.92 ounces
Product Dimensions85x54x5 mm, 3.3x2.1x0.2 inches
Packaged Weight0.183 kg, 6.46 ounces
Packaged Dimensions160x135x49 mm, 6.3x5.3x1.9 inches
GTIN (barcode)837324000108
Operating System Compatibility
Operating Systems
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows 2000
Interface
PCMCIAPCMCIA (Personal Computer Memory Card International Association) is an international standards body and trade association with over 100 member companies that was founded in 1989 to establish standards for Integrated Circuit cards and to promote interchangeability among mobile computers where ruggedness, low power, and small size were critical. Change
