is 300 intashield pci 1xrs232 1xlpt printer port
Achat en Quantité ? Demandez un Devis

Demandez un Devis

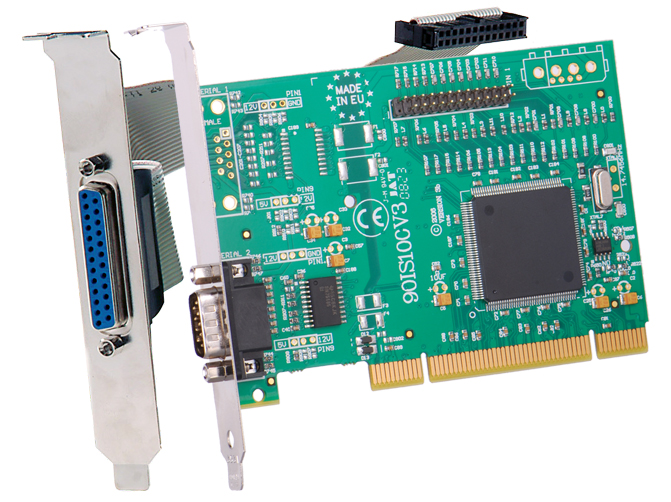

This card provides 1 industry standard 9 pin RS232 serial COM ports in a single PCI slot. By adding the LPT adapter cable, a parallel printer port becomes available. As PCI is fully Plug & Play compatible the operating system or BIOS automatically configures that card ensuring conflict free installation.

Intashield offers a good serial connection at a great price. Many applications just need a simple, reliable serial connection, no high baud rate or powered cards, no opto-isolation, no custom options or alternative connectors, simply fit and forget RS232 serial.

Systèmes d'exploitation

Spec Tech

Serial Port
ProtocolRS232 + LPT Printer
ConnectorDB9 Connector (9 Pin Male) & DB25 Connector (25 Pin Male)
UART Compatibility16550/16450
Tx FIFO Size16
Rx FIFO Size16
Operating DistanceEIA - RS232 Standard
Cable1 port RS232 and printer port on fly lead
Serial Port Settings
Max Baud Rate115,200
Data Bits5,6,7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1, 1.5 or 2
Tx/Rx ModesPoint to Point
PCB Layers4
Form FactorStandard Height
Includes Printer PortNo
Galvanic IsolationNo
Power Consumptionn/a
Product Weight0.073 kg
Product Dimensions135(l) x 18(w) x 120(h) mm
Packaged Weight0.175 kg
Packaged Dimensions160(l) x 135(w) x 45(h) mm
GTIN (barcode)837324002652
Operating System Compatibility
Operating Systems
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows 2000
PCI 2.3Conventional PCI
