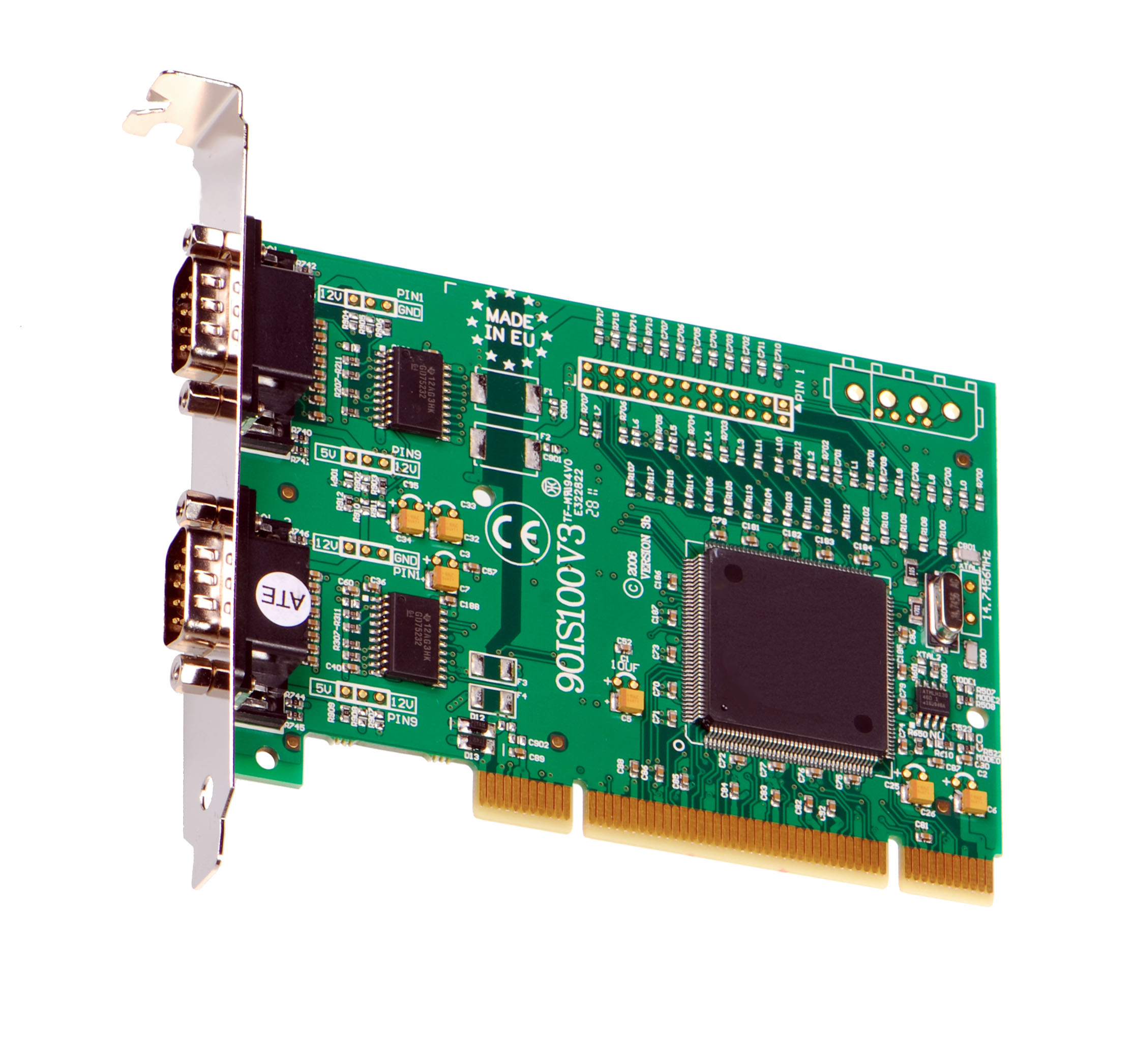

is 200 intashield pci 2xrs232

N'est plus produit- Recommended Alternative Products

IS-200UC-734UP-880UC-257UC-607
IS-200 - Intashield 2 Port RS232 PCI CardUC-734 - Carte Série PCI 2 Ports RS232 DB9UP-880 - Carte Série PCI 2 Ports RS232 Autoalimenté – 1.0 AMPUC-257 - Carte Séries PCI 2 Ports RS232UC-607 - Carte Série PCI 2 Port RS232 avec un débit maximum de données de 230 400 baud
Intashield 2 Port RS232 PCI CardCarte Série PCI 2 Ports RS232 DB9Carte Série PCI 2 Ports RS232 Autoalimenté – 1.0 AMPCarte Séries PCI 2 Ports RS232Carte Série PCI 2 Port RS232 avec un débit maximum de données de 230 400 baud
Ports
2
Protocol
RS232
UART
550
Max Baud Rate
115,200
Form Factor
Standard Height
Ports
2
Protocol
RS232
UART
Brainboxes 16C958
Max Baud Rate
115,200
Form Factor
Standard Height
Ports
2
Protocol
RS232
UART
Brainboxes 16C958
Max Baud Rate
115,200
Form Factor
Standard Height
Ports
2
Protocol
RS232
UART
Brainboxes 16C958
Max Baud Rate
115,200
Form Factor
Standard Height
Ports
2
Protocol
RS232
UART
Brainboxes 16C958
Max Baud Rate
230,400
Form Factor
Standard Height
2 Port RS232 PCI 2 Port RS232 PCI Autoalimenté2 Port RS232 PCI Port Imprimante LPT2 Port RS232 PCI
£ 27.26 (gbp)£ 129.95 (gbp)£ 139.00 (gbp)£ 129.95 (gbp)£ 149.95 (gbp)

Description

This card provides 2 industry standard 9 pin RS232 serial COM ports in a single PCI slot. As PCI is fully Plug & Play compatible the operating system or BIOS automatically configures the card ensuring conflict free installation.

Intashield offers a good serial connection at a great price. Many applications just need a simple, reliable serial connection, no high baud rate or powered cards, no opto-isolation, no custom options or alternative connectors, simply fit and forget RS232 serial.

Customer Feedback

Systèmes d'exploitation



Spec Tech

Serial Port
Ports2
ProtocolRS232
ConnectorDB9 Connector - 9 Pin Male
UART550
UART Compatibility16550/16450
Tx FIFO Size16
Rx FIFO Size16
Operating DistanceEIA - RS232 Standard
CableNo Cable; Integrated Connector
Serial Port Settings
Max Baud Rate115,200
Data Bits5,6,7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1, 1.5 or 2
Tx/Rx ModesPoint to Point
General
PCB Layers4
Form FactorStandard Height
Includes Printer PortNo
Galvanic IsolationNo
Power Consumptionn/a
Product Weight0.079 kg, 2.79 ounces
Product Dimensions134x120x18 mm, 5.3x4.7x0.7 inches
Packaged Weight0.161 kg, 5.68 ounces
Packaged Dimensions160x135x49 mm, 6.3x5.3x1.9 inches
GTIN (barcode)837324002409
Operating System Compatibility
Operating Systems
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows 2000
Interface
PCI 2.3Conventional PCI
