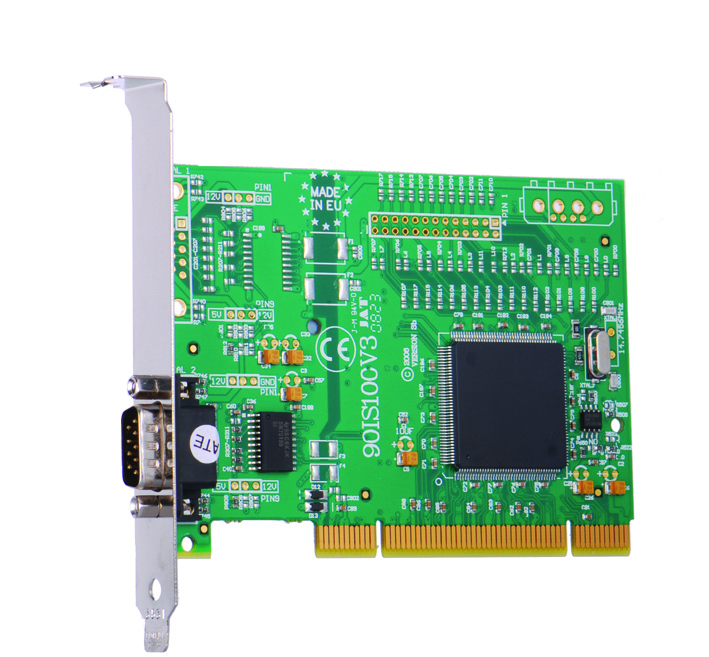

is 100 intashield pci 1xrs232

N'est plus produit- Recommended Alternative Products

IS-100UC-246UC-464UC-734
IS-100 - Intashield 1 Port RS232 PCI CardUC-246 - Carte Série PCI 1 Port RS232UC-464 - Carte Série PCI low profile 1 Port RS232 avec Port Imprimante Parallèle LPTUC-734 - Carte Série PCI 2 Ports RS232 DB9
Intashield 1 Port RS232 PCI CardCarte Série PCI 1 Port RS232Carte Série PCI low profile 1 Port RS232 avec Port Imprimante Parallèle LPTCarte Série PCI 2 Ports RS232 DB9
Ports
1
Protocol
RS232
UART
550
Max Baud Rate
115,200
Form Factor
Standard Height
Ports
1
Protocol
RS232
UART
Brainboxes 16C958
Max Baud Rate
115,200
Form Factor
Standard Height
Ports
1
Protocol
RS232
UART
Brainboxes 16C958
Max Baud Rate
115,200
Printer Port
1
Form Factor
Standard Height
Ports
2
Protocol
RS232
UART
Brainboxes 16C958
Max Baud Rate
115,200
Form Factor
Standard Height
1 Port RS232 PCI 2 Port RS232 PCI Port Imprimante LPT2 Port RS232 PCI
£ 25.63 (gbp)£ 60.00 (gbp)£ 99.95 (gbp)£ 129.95 (gbp)

Description

This card provides 1 industry standard 9 pin RS232 serial COM port in a single PCI slot. As PCI is fully Plug & Play compatible the operating system or BIOS automatically configures the card ensuring conflict free installation.

Intashield offers a good serial connection at a great price. Many applications just need a simple, reliable serial connection, no high baud rate or powered cards, no opto-isolation, no custom options or alternative connectors, simply fit and forget RS232 serial.

Customer Feedback

Systèmes d'exploitation



Spec Tech

Serial Port
Ports1
ProtocolRS232
ConnectorDB9 Connector - 9 Pin Male
UART550
UART Compatibility16550/16450
Tx FIFO Size16
Rx FIFO Size16
Operating DistanceEIA - RS232 Standard
CableNo Cable; Integrated Connector
Serial Port Settings
Max Baud Rate115,200
Data Bits5,6,7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1, 1.5 or 2
Tx/Rx ModesPoint to Point
General
PCB Layers4
Form FactorStandard Height
Includes Printer PortNo
Galvanic IsolationNo
Power Consumptionn/a
Product Weight0.064 kg, 2.26 ounces
Product Dimensions134x120x18 mm, 5.3x4.7x0.7 inches
Packaged Weight0.145 kg, 5.11 ounces
Packaged Dimensions160x135x49 mm, 6.3x5.3x1.9 inches
GTIN (barcode)837324002645
Operating System Compatibility
Operating Systems
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows 2000
Interface
PCI 2.3Conventional PCI
