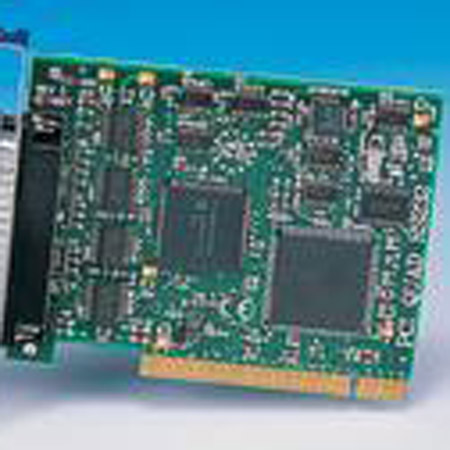

5V PCI 4 Port RS232 DB9 - N'est plus produit CC-268
This half size card provides 4 industry standard RS232 serial COM ports in a single PCI slot. A fully moulded quad cable terminated in four 9 pin male ‘D’ plugs ensures neat & easy connections. In a PC with 4 free PCI slots that gives 16 ports! As PCI is fully Plug & Play compatible, the operating system or Bios automatically configures the card ensuring conflict free installation. Serial Solutions Device Driver CD contains software for Windows 7, Server 2008, Vista, Server 2003, XP, 2000, Millennium, 98, 95, NT4, Windows 3.x, DOS and OS/2. Informative manuals and sample programs are supplied with full source code on CD!
N'est plus produit- Recommended Alternative Products
| CC-268 | CC-265 | CC-246 | CC-257 | CC-279 |
 |  |  |  |  |
| 5V PCI 4 Port RS232 DB9 | 5V PCI 4 Port RS232 DB25 | 5V PCI 1 Port RS232 | 5V PCI 2 Port RS232 DB9 | 5V PCI 8 Port RS232 DB9 |
Ports
4
Protocol
RS232
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
| Ports
4
Protocol
RS232
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
| Ports
1
Protocol
RS232
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
| Ports
2
Protocol
RS232
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
| Ports
8
Protocol
RS232
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
|
   | |  |  |  |
| £ 265.00 (gbp) | £ 265.00 (gbp) | £ 60.00 (gbp) | £ 129.95 (gbp) | £ 399.95 (gbp) |
| Détails | Détails | Détails | Détails |
Customer Feedback
Systèmes d'exploitation
Spec Tech
| Serial Port | |
| Ports | 4 |
| Protocol | RS232 |
| Connector | DB9 Connector - 9 Pin Male |
| UART | Oxford 950 |
| UART Compatibility | 16750/16550/16450 backwards compatibile |
| Tx FIFO Size | 16 |
| Rx FIFO Size | 16 |
| Operating Distance | EIA - RS232 Standard |
| Cable | 4 port cable (44 way D to 4x25 Pin Male) |
| Serial Port Settings | |
| Max Baud Rate | 115,200 |
| Data Bits | 5,6,7 or 8 |
| Parity | Odd, Even, None, Mark or Space |
| Stop Bits | 1 or 2 |
| Flow Control | RTS/CTS, DSR/DTR, XON/XOFF |
| Tx/Rx Modes | Point to Point |
| General | |
| PCB Layers | 4 |
| Form Factor | Standard Height |
| Includes Printer Port | No |
| Galvanic Isolation | No |
| Power Consumption | 260mA @ 5V, 30mA @ 12V |
| Product Weight | 0.089 kg |
| Product Dimensions | awaiting |
| Packaged Weight | 0.738 kg |
| Packaged Dimensions | awaiting |
| GTIN (barcode) | |
| Operating System Compatibility | |
| Operating Systems |
|
| Interface | |
| PCI 2.3 | Conventional PCI |
