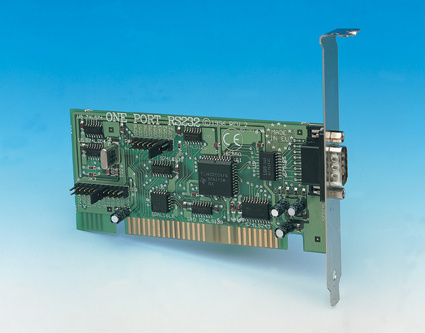

ISA 1 Port RS232 - N'est plus produit CC-122
The half size card provides one RS232 serial port, using a standard 9 pin Male D connector. The single port may be jumper configured as COM1 - COM8 with interrupt line jumpers set to IRQ 2-7, 10-12, 14-15. Serial Solutions Device Driver CD contains software for Windows Millennium, Windows 98, Windows 95, Windows NT4, Windows 3.x, DOS and OS/2. Informative manuals and sample programs are supplied with full source code on CD! 16550 UARTs provide a 16 byte input and 16 byte output FIFO hardware buffer for each serial port allowing high data rates without data loss or overrun errors in todays multi-tasking operating systems.
N'est plus produit- Recommended Alternative Products
| CC-122 | CC-016 | CC-118 | CC-246 | CC-065 |
 |  |  |  |  |
| ISA 1 Port RS232 | ISA 1 Port RS232 and 1 Port LPT | ISA 3 Port RS232 | 5V PCI 1 Port RS232 | ISA 4 Port RS232 DB9 |
Ports
1
Protocol
RS232
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
| Ports
1
Protocol
RS232
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
| Ports
3
Protocol
RS232
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
| Ports
1
Protocol
RS232
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
| Ports
4
Protocol
RS232
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
|
   |  |  |  |  |
| £ 50.00 (gbp) | £ 79.95 (gbp) | £ 125.00 (gbp) | £ 60.00 (gbp) | £ 215.00 (gbp) |
| Détails | Détails | Détails | Détails |
Customer Feedback
Systèmes d'exploitation
Spec Tech
| Serial Port | |
| Ports | 1 |
| Protocol | RS232 |
| Connector | DB9 Connector - 9 Pin Male |
| UART | Oxford 950 |
| UART Compatibility | 16750/16550/16450 backwards compatibile |
| Tx FIFO Size | 16 |
| Rx FIFO Size | 16 |
| Operating Distance | EIA - RS232 Standard |
| Cable | No Cable; Integrated Connector |
| Serial Port Settings | |
| Max Baud Rate | 115,200 |
| Data Bits | 5,6,7 or 8 |
| Parity | Odd, Even, None, Mark or Space |
| Stop Bits | 1 or 2 |
| Tx/Rx Modes | Point to Point |
| General | |
| PCB Layers | 4 |
| Form Factor | Standard Height |
| Includes Printer Port | No |
| Galvanic Isolation | No |
| Power Consumption | 300ma @ 5V, 50ma @ 12V |
| Product Weight | 0.059 kg |
| Product Dimensions | awaiting |
| Packaged Weight | 0.234 kg |
| Packaged Dimensions | awaiting |
| GTIN (barcode) | |
| Operating System Compatibility | |
| Operating Systems |
|
| Interface | |
| ISA | Industry Standard Architecture |
