ISA 1 Port RS232 and 1 Port RS422/485 - N'est plus produit CC-057

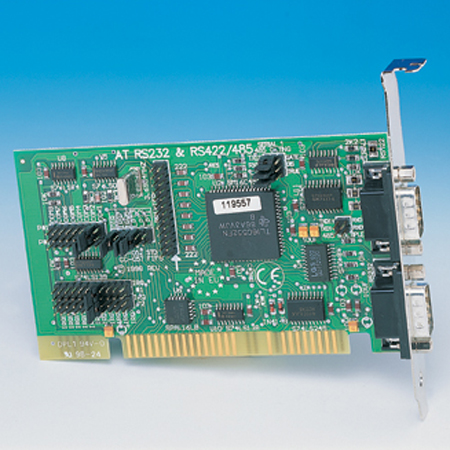

The half size card provides one RS232 serial port and one RS422/485 serial port. The upper RS422/485 port and the lower RS232 port both use the standard ISA 9 pin Male D connector. The RS422/485 port is configurable as RS422 with and without handshaking or RS485 full and half duplex. Each serial port may be jumper configured as COM1 - COM8 with interrupt line jumpers set to IRQ 2-7, 10-12, 14-15. Optional LPT port available with a fly lead from the board to a backplate on the PC. Serial Solutions Device Driver CD contains software for Windows Millennium, Windows 98, Windows 95, Windows NT4, Windows 3.x, DOS and OS/2. Informative manuals and sample programs are supplied with full source code on CD!
N'est plus produit- Recommended Alternative Products
CC-057 | CC-131 | CC-118 | CC-122 | CC-065 |
![]() | ![]() | ![]() | ![]() | ![]() |
ISA 1 Port RS232 and 1 Port RS422/485 | ISA 2 Port RS422/485 | ISA 3 Port RS232 | ISA 1 Port RS232 | ISA 4 Port RS232 DB9 |
Ports
1+1
Protocol
RS232 + RS422/485
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
| Ports
2
Protocol
RS422/485
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
| Ports
3
Protocol
RS232
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
| Ports
1
Protocol
RS232
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
| Ports
4
Protocol
RS232
UART
Oxford 950
Max Baud Rate
115,200
Form Factor
Standard Height
|
![]() ![]() ![]() | ![]() ![]() ![]() | ![]() ![]() ![]() | ![]() ![]() ![]() | ![]() ![]() ![]() |
£ 120.00 (gbp) | £ 119.95 (gbp) | £ 125.00 (gbp) | £ 50.00 (gbp) | £ 215.00 (gbp) |
Détails | Détails | Détails | Détails |
Customer Feedback
Spec Tech
Serial Port | |
Ports | 1+1 |
Protocol | RS232 + RS422/485 |
Connector | DB9 Connector - 9 Pin Male |
UART | Oxford 950 |
UART Compatibility | 16750/16550/16450 backwards compatibile |
Tx FIFO Size | 16 |
Rx FIFO Size | 16 |
Operating Distance | RS422/485 Standard (4000 ft : 1200 metres) / EIA - RS232 Standard |
Cable | No Cable; Integrated Connector |
Serial Port Settings | |
Max Baud Rate | 115,200 |
Data Bits | 5,6,7 or 8 |
Parity | Odd, Even, None, Mark or Space |
Stop Bits | 1 or 2 |
Tx/Rx Modes | Point to Point (RS232), Full Duplex, Half Duplex Autogating, Hardware Autogating, TxD always/ RTS true enabled, RxD always enabled, RxD RTS true disabled, CTS forced true (RS422/485) |
General | |
PCB Layers | 4 |
Form Factor | Standard Height |
Includes Printer Port | No |
Galvanic Isolation | No |
Power Consumption | 300mA @ 5V, 50mA @ ±12V |
Product Weight | 0.085 kg |
Product Dimensions | awaiting |
Packaged Weight | 0.26 kg |
Packaged Dimensions | awaiting |
GTIN (barcode) | |
Operating System Compatibility | |
Operating Systems |
|
Interface | |
ISA | Industry Standard Architecture |
