bl 521 bluetooth 1xrs232 class 1

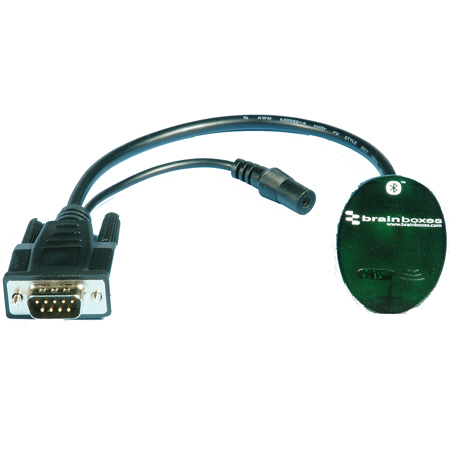

Award winning Brainboxes RS232 Adaptor allows any device with an RS232 port to communicate with another Bluetooth device without the need for any additional software. Ideal for Bluetooth enabling 'dumb' RS232 devices such as dataloggers etc. Based on fully tested Bluetooth silicon, allowing communications at the full Bluetooth data rates. Integral Antenna. This class 1 Bluetooth device operates at 14.4dBm, making it one of the leading Bluetooth RS232 Adaptors in the market today.

N'est plus produit- Recommended Alternative Products

BL-521BL-819BL-830BL-875ES-357
BL-521 - Class 1 Bluetooth to RS232 Serial Adapter 1 Port MaleBL-819 - Adaptateur Bluetooth vers RS232 1 Port Mâle.BL-830 - Adaptateur Bluetooth vers Série 1 Port RS232 FemaleBL-875 - Adaptateur Bluetooth pré appariéES-357 - Adaptateur Ethernet vers Serie 1 Port RS232 et 1 Port RS422/485
Class 1 Bluetooth to RS232 Serial Adapter 1 Port MaleAdaptateur Bluetooth vers RS232 1 Port Mâle.Adaptateur Bluetooth vers Série 1 Port RS232 FemaleAdaptateur Bluetooth pré appariéAdaptateur Ethernet vers Serie 1 Port RS232 et 1 Port RS422/485
Bluetooth Class
Class 1
Ports
1
Protocol
RS232
Max Baud Rate
1,000,000 (1 MegaBaud)
Bluetooth Class
Class 2
Ports
1
Protocol
RS232
Max Baud Rate
1,000,000 (1 MegaBaud)
Bluetooth Class
Class 2
Ports
2
Protocol
RS232
Max Baud Rate
1,000,000 (1 MegaBaud)
Bluetooth Class
Class 2
Ports
2
Protocol
RS232 + RS422/485
Max Baud Rate
1,000,000 (1 MegaBaud)
2 Port Screw Terminal
£ 147.00 (gbp)£ 95.00 (gbp)£ 95.00 (gbp)£ 159.00 (gbp)£ 139.95 (gbp)

Customer Feedback

Systèmes d'exploitation


Spec Tech

Bluetooth Settings
Bluetooth Qualification1.1 Qualified
Bluetooth ClassClass 1
Radio Frequency2.45 GHz
Power ConsumptionDepends on usage
Product Weightawaiting
Product Dimensionsawaiting
Packaged Weightawaiting
Packaged Dimensionsawaiting
GTIN (barcode)837324000009
Operating System Compatibility
Operating Systems
  • Suitable for any device with Serial Port

Agréments

Award


Other
