bl 500 bluetooth pcmcia card bcsp

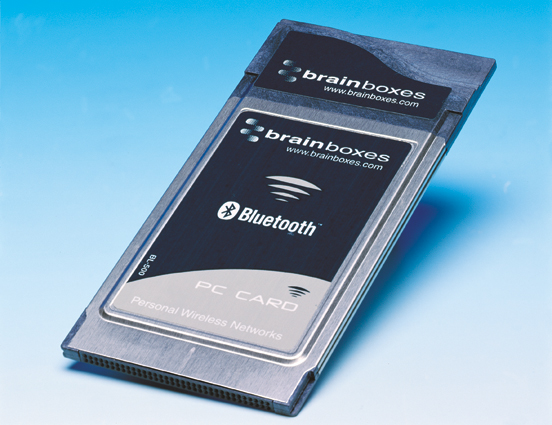

The Brainboxes Type II PCMCIA card allows a personal computer with a PCMCIA slot to communicate with other Bluetooth devices. It is based on the Cambridge Silicon Radio BC01b chip, which interfaces to a UART running at 921,600 baud, allowing communications at the full Bluetooth data rates. The antenna for the board is built into the PCB.This card is part of a wide range of Bluetooth products available from Brain Boxes including Type I Compact Flash, USB and RS232. This card is available with Brain Boxes drivers and Bluetooth software stack for Windows 2000, Windows ME, Windows 98, Windows 95, Pocket PC. For more details on Brain Boxes Bluetooth software stack see www.brainboxes.com/bluetooth.

N'est plus produit- Recommended Alternative Products

BL-500BB-400BL-819BL-830BL-875
BL-500 - Bluetooth PCMCIA AdapterBB-400 - Industrial Edge Controller - Powered by Pi - DIO + Serial + BT WiFi NFC USB + EthernetBL-819 - Adaptateur Bluetooth vers RS232 1 Port Mâle.BL-830 - Adaptateur Bluetooth vers Série 1 Port RS232 FemaleBL-875 - Adaptateur Bluetooth pré apparié
Bluetooth PCMCIA AdapterIndustrial Edge Controller - Powered by Pi - DIO + Serial + BT WiFi NFC USB + EthernetAdaptateur Bluetooth vers RS232 1 Port Mâle.Adaptateur Bluetooth vers Série 1 Port RS232 FemaleAdaptateur Bluetooth pré apparié
Bluetooth Class
Class 1
Main Processor
Raspberry Pi Compute Module 3+, 1.2GHz quad-core Broadcom BCM2837B0 processor
RAM
1 Gbyte LPDDR2 RAM
IO Protocols
MQTT, OPC-UA, REST, Modbus, WebSockets, ASCII TCP, Unix Domain Socket
Description
8 Digital Inputs and 8 Digital Outputs
Digital Inputs
Up to 8
Digital Outputs
Up to 8
Inputs NPN/PNP
Jumper Selectable
Ports
1
Protocol
Selectable RS232/422/485
Max Baud Rate
921,600
Wi-Fi
Yes : station and access point mode
Wi-Fi Standard
802.11 b/g/n
Bluetooth Class
Class 1
Uninterrupted Power Supply
Yes; Integrated UPS
UPS Typical shutdown window
40 seconds mean time til shutdown under typical workload
Industrial Standard
Yes
Ports
1
Protocol
RS232
Max Baud Rate
1,000,000 (1 MegaBaud)
Bluetooth Class
Class 2
Ports
1
Protocol
RS232
Max Baud Rate
1,000,000 (1 MegaBaud)
Bluetooth Class
Class 2
Ports
2
Protocol
RS232
Max Baud Rate
1,000,000 (1 MegaBaud)
Bluetooth Class
Class 2
£ 119.00 (gbp)£ 399.00 (gbp)£ 95.00 (gbp)£ 95.00 (gbp)£ 159.00 (gbp)

Customer Feedback

Systèmes d'exploitation


Spec Tech

Bluetooth Settings
Bluetooth Qualification1.1 Qualified
Bluetooth ClassClass 1
Radio Frequency2.45 GHz
Power Consumption150mA @ 5V (typical)
Product Weightawaiting
Product Dimensionsawaiting
Packaged Weightawaiting
Packaged Dimensionsawaiting
GTIN (barcode)
Operating System Compatibility
Operating Systems
  • Microsoft Windows ME
  • Microsoft Windows 2000
  • Microsoft Windows 95
